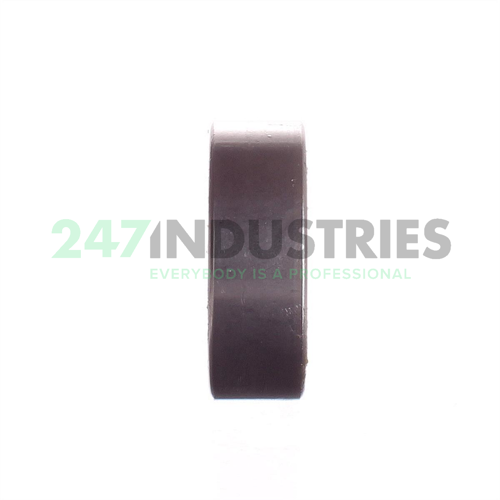

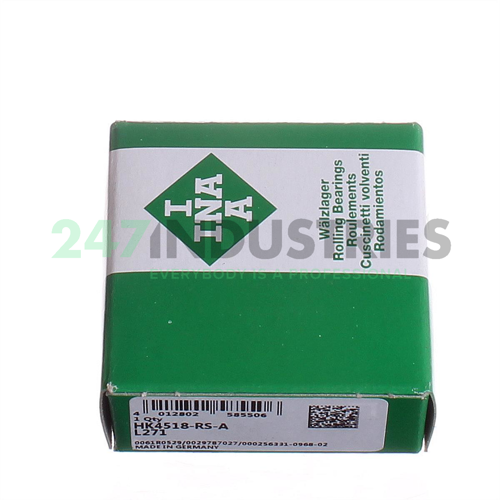

HK4518-RS-A-L271 INA

Afmetingen

1. Binnenmaat (d) mm 45
2. Buitenmaat (D) mm 52
3. Breedte (B) mm 18
4. Binnenmaat (d) inch 1.7717
5. Buitenmaat (D) inch 2.0472
6. Breedte (B) inch 0.7087
7. Diameter onderrol (F w) mm 45
8. Breedte (C) mm 18

Suffix-omschrijving

1. RS One Seal, Buna-N Rubber, Radial Type
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
3. L271 Anti Wear Protection Grease

Technische specificaties

1. Beschikbaarheid 32 stuks
2. Merk INA
3. Item number HK4518-RS-A-L271 INA
4. Also known as 0002563310968

5. EAN 4012802585506
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.064

Producteigenschappen

1. Afdichting RS - rubberen afdichting aan één zijde

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 43000
2. Radial Dynamic Load Rating Cr (N) 21300
3. Grenstoerental (n G) 3550
4. Toerentalgrens voor vet smering (n G Vet) 3550
5. ECLASS number 23-05-09-05
6. ECLASS2 number 23-05-09-05
7. Medias omschrijving Drawn cup needle roller bearings with open ends HK..-RS, lip seal on one side, to DIN 618
