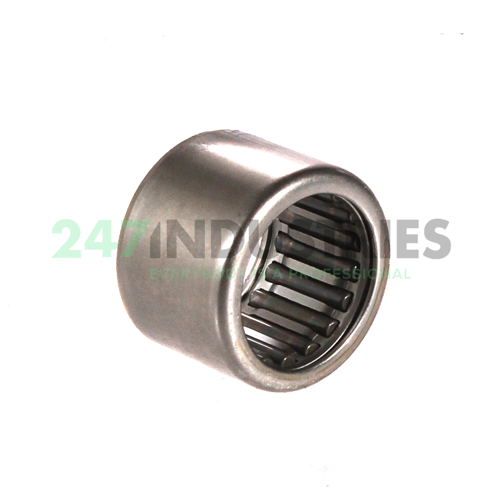

HK1616-B INA

Afmetingen

1. Binnenmaat (d) mm 16
2. Buitenmaat (D) mm 22
3. Breedte (B) mm 16
4. Binnenmaat (d) inch 0.6299
5. Buitenmaat (D) inch 0.8661
6. Breedte (B) inch 0.6299
7. Diameter onderrol (F w) mm 16
8. Breedte (C) mm 16

Suffix-omschrijving

1. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische specificaties

1. Beschikbaarheid 868 stuks
2. Merk INA
3. Item number HK1616-B INA
4. Also known as 0000592690000
   RHNA162216

5. EAN 4012802421781
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.0154

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 10900
3. Grenstoerental (n G) 15600
4. Toerentalgrens voor vet smering (n G Vet) 9300
5. Referentiesnelheid (n ϑr) 11600
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05
8. Medias omschrijving Drawn cup needle roller bearings with open ends HK, to DIN 618/ISO 3245
