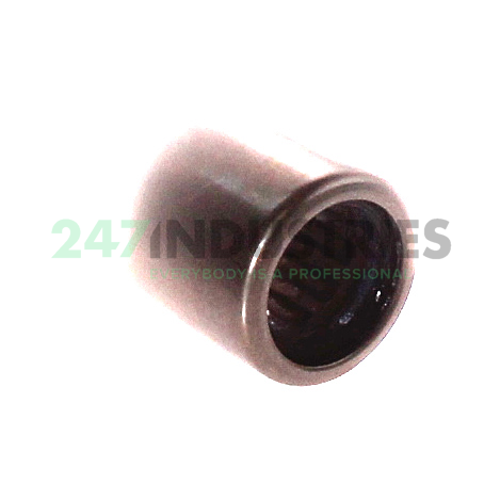

HK0812-2RS-FPM-DK-B-L178 INA

Afmetingen

1. Binnenmaat (d) mm 8
2. Buitenmaat (D) mm 12
3. Breedte (B) mm 12
4. Binnenmaat (d) inch 0.315
5. Buitenmaat (D) inch 0.4724
6. Breedte (B) inch 0.4724
7. Diameter onderrol (F w) mm 8

Suffix-omschrijving

1. 2RS Lip Seals On Both Sides
2. FPM Fluorcarbon (Viton®) - Seal Of Series G, Made From Fluoro Rubber
3. DK Tested On Sealing
4. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
5. L178 High Speed Grease, Low And High Temp. -50°C / 120°C. Longtime Limit Temperature 75°C

Technische specificaties

1. Beschikbaarheid 61 stuks
2. Merk INA
3. Item number HK0812-2RS-FPM-DK-B-L178 INA
4. Also known as 0074488561193

5. EAN 4054362387831
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.004

Producteigenschappen

1. Afdichting 2RS - rubberen afdichting aan twee zijden

Data van Schaeffler (medias)

1. Basis statische radiale belasting (C 0r) 2600
2. Grenstoerental (n G) 17700
3. Toerentalgrens voor vet smering (n G Vet) 17700
