HFL0408-KF-R-A-L564 INA

Afmetingen

1. Binnenmaat (d) mm 4,00
2. Buitenmaat (D) mm 8,00
3. Breedte (B) mm 8,00
4. Binnenmaat (d) inch 0.1575
5. Buitenmaat (D) inch 0.3150
6. Breedte (B) inch 0.3150
7. Diameter onderrol (F w) mm 4,00

Suffix-omschrijving

1. KF Plastic Springs
2. R Partially Knurled Outer Ring For Assembly In Plastic Housing
3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
4. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technische specificaties

1. Beschikbaarheid 118 stuks
2. Merk INA
3. Item number HFL0408-KF-R-A-L564 INA
4. Also known as 0017163100962
   HFL0408KFRA

5. EAN 4047643182409
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.0016

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Grenstoerental voor draaiende as (n GW) "34000.0000"
2. Toerentalgrens voor draaiende buitenring (n GA) "8000.0000"
3. ECLASS number 23-05-21-90
4. ECLASS2 number 23-05-21-90

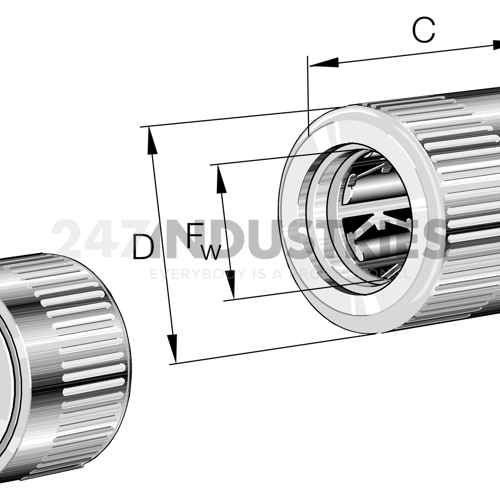

5. Medias omschrijving Drawn cup roller clutches HFL..-KF-R, with plain or rolling bearing arrangement, plastic springs, knurled outer ring

Downloads en links

1. Link to manufacturer Link to manufacturer
