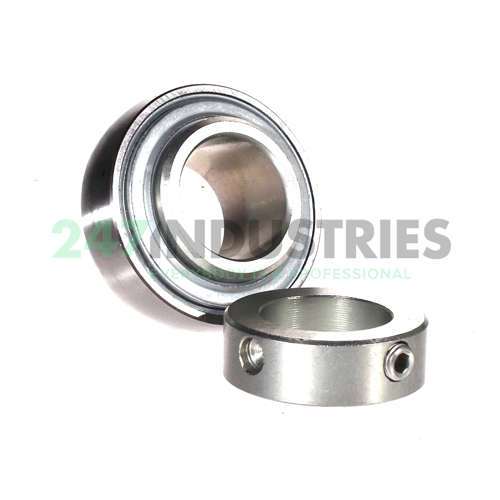

GE35-XL-KRR-B-FA164 INA

Afmetingen

1. Binnenmaat (d) mm 35
2. Buitenmaat (D) mm 72
3. Breedte (B) mm 51,3
4. Binnenmaat (d) inch 1.378
5. Buitenmaat (D) inch 2.8346
6. Breedte (B) inch 2.0197
7. Buitendiameter (D SP) mm 72
8. Breedte (b) mm 37,7
9. Breedte borgring totaal (B 1) mm 51,3

Suffix-omschrijving

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring
4. FA164 High Temperature Design Up To +250°C

Technische specificaties

1. Beschikbaarheid 18 stuks
2. Merk INA
3. Item number GE35-XL-KRR-B-FA164 INA
4. Also known as 0009510720000
   GE35-KRR-B-FA164

5. EAN 4012802823905
6. Category Lagers voor behuizingen

Gewicht en afmetingen

1. Gewicht (kg) 0.525

Producteigenschappen

1. Afdichting 2F - standaard afdichting voor Y-lagers
2. Smering Standaard smering
3. Speciale behandeling E - High Temp Design Up to +250°C

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias omschrijving Radial insert ball bearings GE..-KRR-B-FA164, spherical outer ring, location by eccentric locking collar, R seals on both sides, for temperatures up to +250°C
