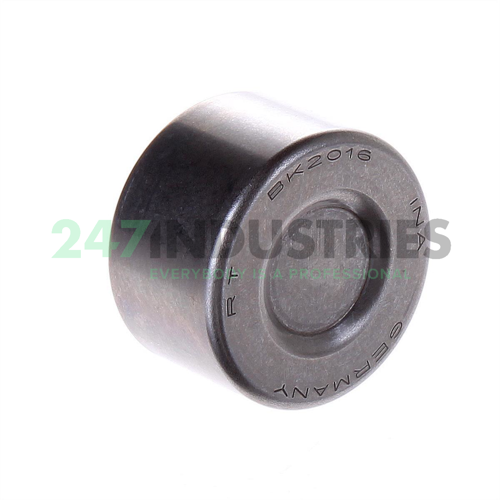

BK2016-A INA

Afmetingen

1. Binnenmaat (d) mm 20
2. Buitenmaat (D) mm 26
3. Breedte (B) mm 16
4. Binnenmaat (d) inch 0.7874
5. Buitenmaat (D) inch 1.0236
6. Breedte (B) inch 0.6299
7. Diameter onderrol (F w) mm 20

Suffix-omschrijving

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technische specificaties

1. Beschikbaarheid 95 stuks
2. Merk INA
3. Item number BK2016-A INA
4. Also known as 0001770590000

5. EAN 4012802432503
6. Category Naaldlager en toebehoren

Gewicht en afmetingen

1. Gewicht (kg) 0.024

Producteigenschappen

1. Afdichting Geen afdichting

Data van Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 20100
2. Radial Dynamic Load Rating Cr (N) 12700
3. Grenstoerental (n G) 12700
4. Toerentalgrens voor vet smering (n G Vet) 7600
5. Referentiesnelheid (n ϑr) 9300
6. ECLASS number 23-05-09-06
7. ECLASS2 number 23-05-09-06
8. Medias omschrijving Drawn cup needle roller bearings with closed end BK, to DIN 618/ISO 3245

Downloads en links

1. Link to manufacturer Link to manufacturer
