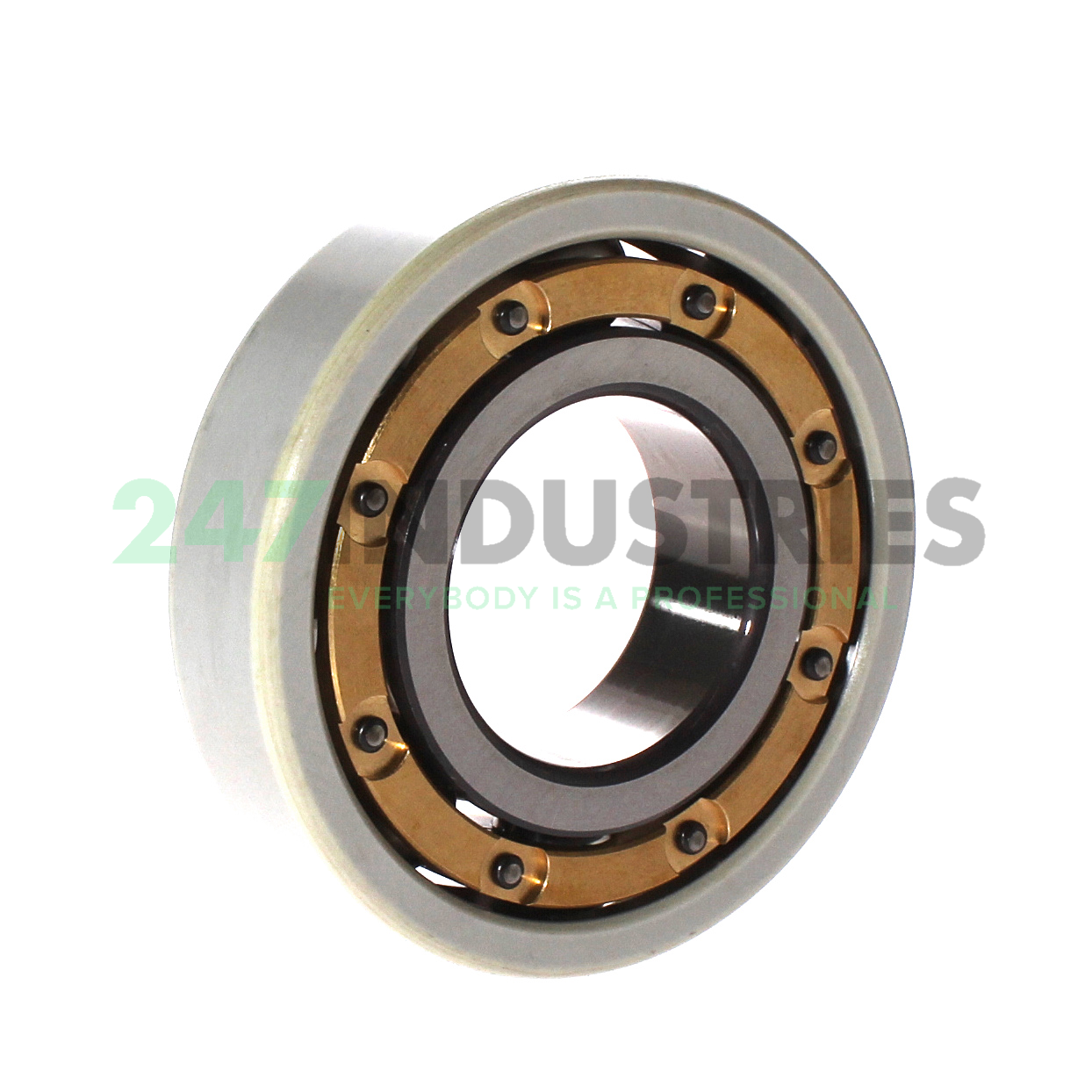

6311-M-J20AA-C3 FAG

Suffix-omschrijving

1. M Solid Brass Cage, Ball-Guided
2. J20AA Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 3.000 V, Layer Thickness 200 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
3. C3 Internal Clearance Larger Than Normal

Technische specificaties

1. Beschikbaarheid 9 stuks
2. Merk FAG
3. Item number 6311-M-J20AA-C3 FAG
4. Also known as 0764838860030
   6311M/C3VL0241

5. EAN 4054364792145
6. Category Eenrijig groefkogellager

Producteigenschappen

1. Interne radiale speling C3 interne speling (hoger dan Cn)
2. Precisie Breakdown Voltage 1000v
3. Smering Standaard smering
4. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C
5. Speciale behandeling Geen speciale behandeling

Data van Schaeffler (medias)

1. Medias omschrijving Deep groove ball bearing 63..-M-J20AA, single row, cf. DIN 625-1
