6311-2Z FAG

Steel seal (2 sides) 55x120x29mm

Voorraad
29 stuks uit voorraad leverbaar
Merk FAG
Artikelnummer 6311-2Z FAG
Binnendiameter 55,00mm
Buitendiameter 120,00mm
Breedte 29,00mm
Productbeschrijving

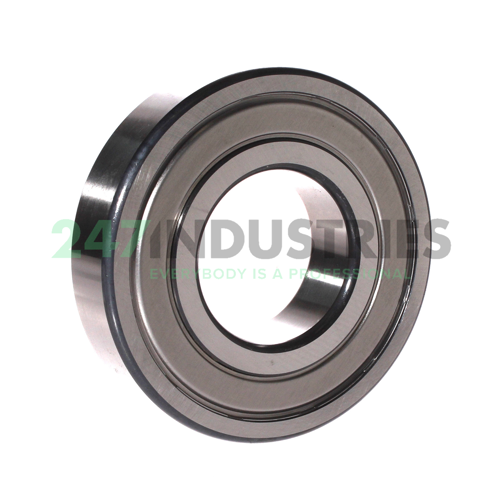

The 6311-2Z FAG is a deep groove ball bearing with a single row design. Deep groove ball bearings have a straight forward design, are robust in operation and are easy to maintain. Deep groove ball bearings reduce rotational friction and support both radial and axial loads.

The 6311-2Z FAG is suitable for high speeds and can operate with low noise.

The dimensions of the 6311-2Z FAG are: Bore (or inner diameter) 55mm, Outer diameter 120mm and Width (or thickness) 29mm.

6300 serie
The 6311-2Z FAG is part of the popular 6300 serie which contain extra light ball bearings and are perfect for limited space applications.The 6300 serie is used in a wide range of industrial processes as well as DIY applications like: skateboards, inline skates, bicycles, washing and drying machines.

Seal
The 2Z suffix indicates that the bearing has a steel seal on both sides. The bearings are filled with a high-quality grease and are lubricated for life.

About FAG
FAG is a brand of the Schaeffler Group Industrial originated in Germany. The Schaeffler Group produces two major bearing brands: FAG and INA. FAG is known for its strength in innovation, high-quality standards and wide portfolio of bearings and related products. If you choose to buy a product from FAG you are ensured of a top quality product.
Read more Toon minder
Hulp nodig?

Vergelijkbaar met: 6311-2Z FAG

Vergelijkbare producten worden geladen

Productinformatie/ specificaties

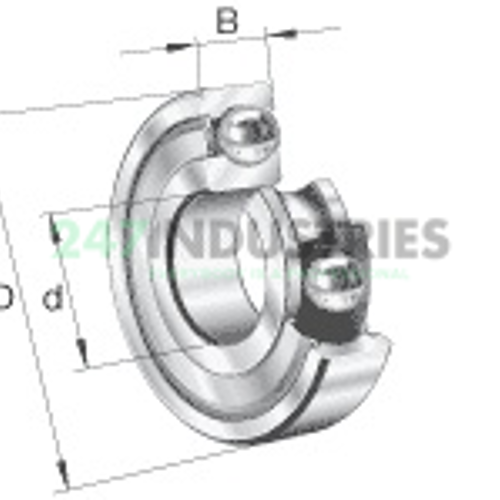

Afmetingen

  1. Binnenmaat (d) mm 55,00
  2. Buitenmaat (D) mm 120,00
  3. Breedte (B) mm 29,00
  4. Binnenmaat (d) inch 2.1654
  5. Buitenmaat (D) inch 4.7244
  6. Breedte (B) inch 1.1417
  7. Breedte (b) mm 29,00

Suffix-omschrijving

  1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)

Technische specificaties

  1. Beschikbaarheid 29 stuks
  2. Merk FAG
  3. Item number 6311-2Z FAG
  4. Also known as 0167237590000
    6311-C-2Z
  5. EAN 4012801165679
  6. Category Eenrijig groefkogellager

Gewicht en afmetingen

  1. Gewicht (kg) 1.38

Producteigenschappen

  1. Boring C - cilindrische boring
  2. Afdichting ZZ/2Z - stalen afdichting aan twee zijden
  3. Type kooi S - stalen of standaard kooi
  4. Externe aanpassing Geen Externe Aanpassing
  5. Interne radiale speling Cn normale interne speling
  6. Precisie Standaardprecisie
  7. Smering Standaard smering
  8. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C
  9. Speciale behandeling Geen speciale behandeling

Data van Schaeffler (medias)

  1. Basis statische radiale belasting (C 0r) "47500.0000"
  2. Grenstoerental (n G) "7200.0000"
  3. Referentiesnelheid (n ϑr) "7100.0000"
