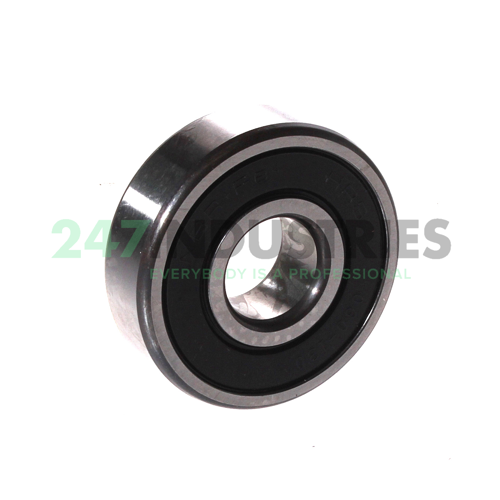

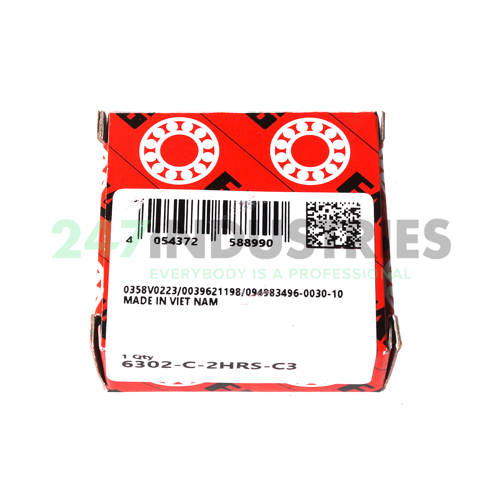

6302-C-2HRS-C3>V FAG

Afmetingen

1. Breedte (B) mm 13

Suffix-omschrijving

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. C3 Internal Clearance Larger Than Normal
4. >V 100% Identical Regardless Of Production Location

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk FAG
3. Artikelnummer 6302-C-2HRS-C3>V FAG
4. Ook bekend als 6302-2RS1/C3
   6302-2RS-C3
   6302-2RSH/C3
   6302-2RSR-C3
   6302-C-2HRS-C3

5. Categorie Eenrijig groefkogellager

Producteigenschappen

1. Boring C - cilindrische boring
2. Warmtestabilisatie Geen warmtestabilisatie - temperaturen tot 120 °C

Data van Schaeffler (medias)

1. Radial Dynamic Load Rating Cr (N) 13300
2. Medias omschrijving Deep groove ball bearing 63..-C-2HRS, single row, cf. DIN 625-1

Downloads en links

1. Link to Manufacturer Link to Manufacturer
