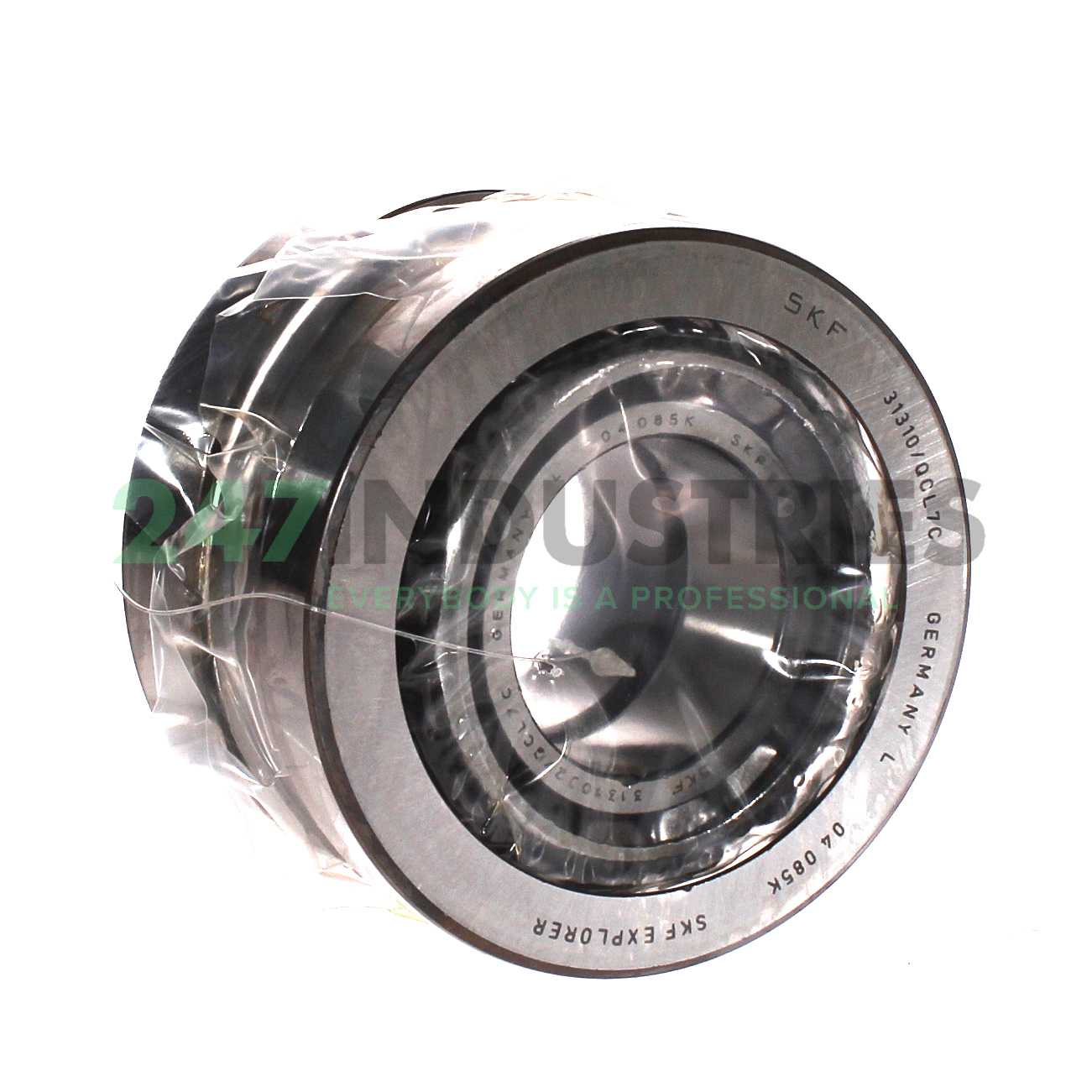

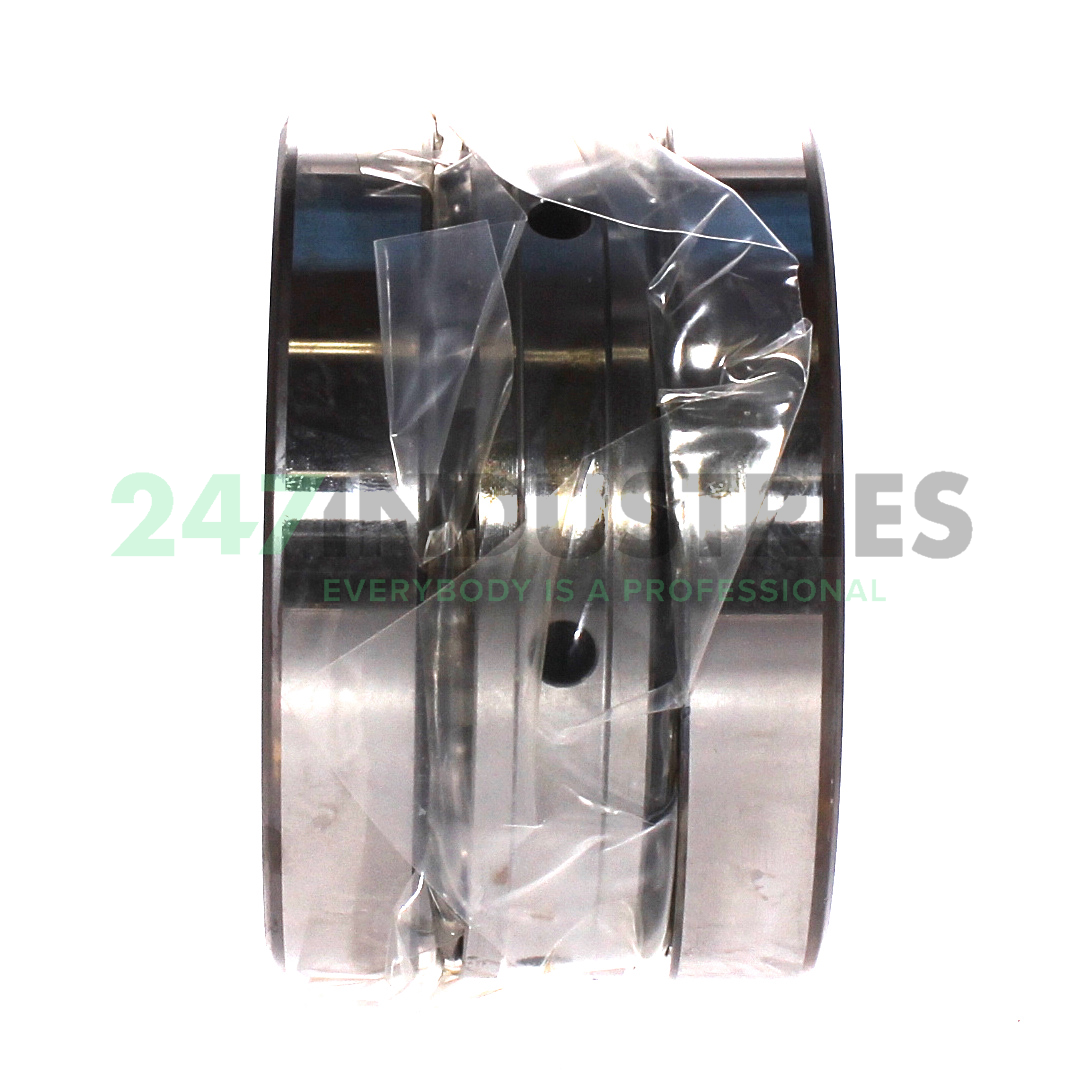

31310J2/QCL7CDF SKF

Afmetingen

1. Binnenmaat (d) mm 50
2. Buitenmaat (D) mm 110
3. Breedte (B) mm 58,5
4. Binnenmaat (d) inch 1.9685
5. Buitenmaat (D) inch 4.3307
6. Breedte (B) inch 2.3031

Suffix-omschrijving

1. J2 Pressed Steel Window-Type Cage. A Figure Following The J Indicates A Different Cage Design
2. Q Optimized Contact Geometry And Surface Finish
3. CL7C High-Performance Design For Pinion Bearing Arrangements
4. DF Matched Bearing Pair Arranged Face-To-Face. A Figure Combination Immediately Following The DF Identifies The Design Of The Intermediate Ring

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk SKF
3. Item number 31310J2/QCL7CDF SKF
4. Also known as 31310A.A60.100.N11CA
   31310-A-N11CA-A60-100
   31310J2/QCL7C (2 PCS)

5. EAN 7316570384635
6. Category Gepaard eenrijige kegellager

Gewicht en afmetingen

1. Gewicht (kg) 2.6

Producteigenschappen

1. Interne speling voor gepaard kegelrollager DF-standaard gekoppelde metrische X-opstelling
