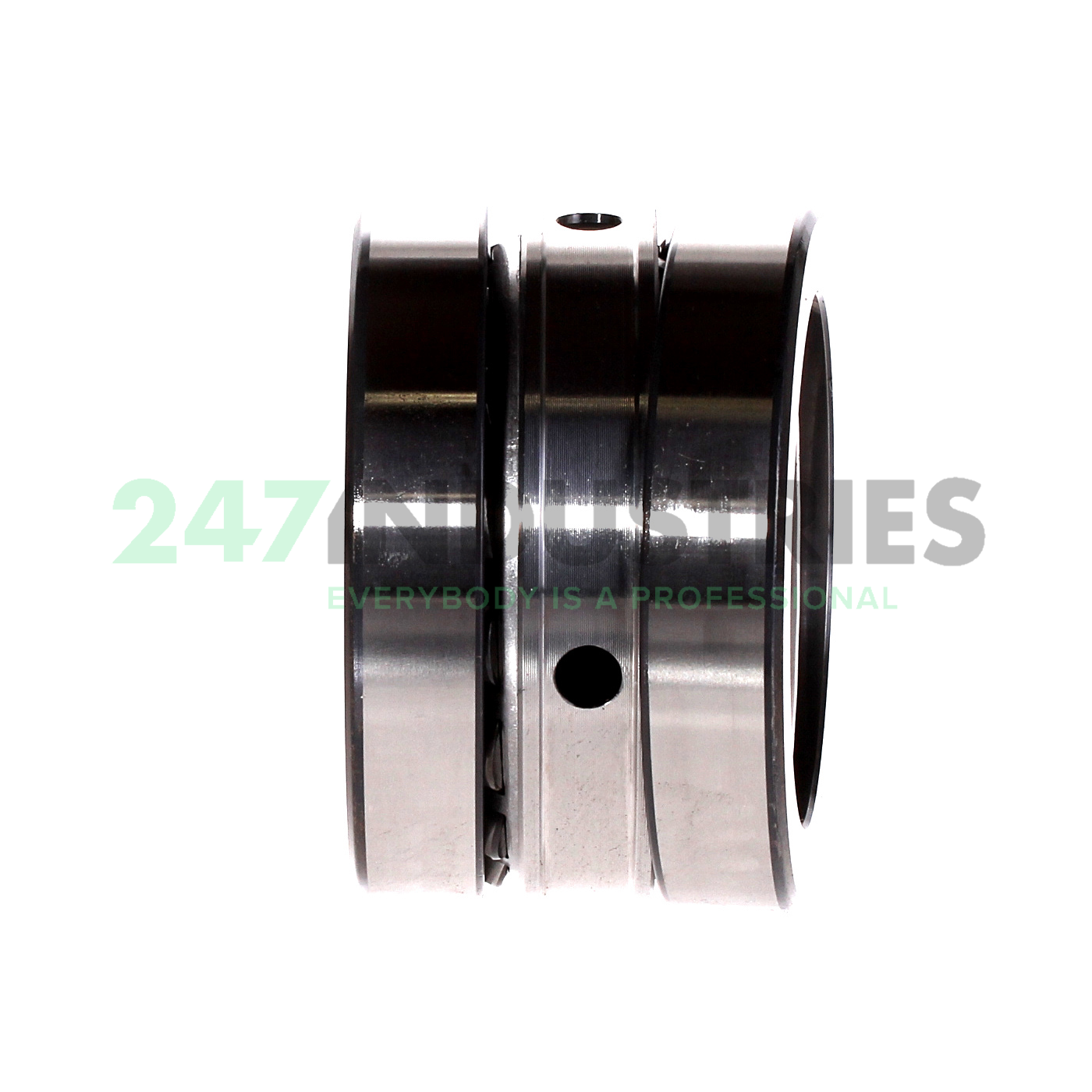

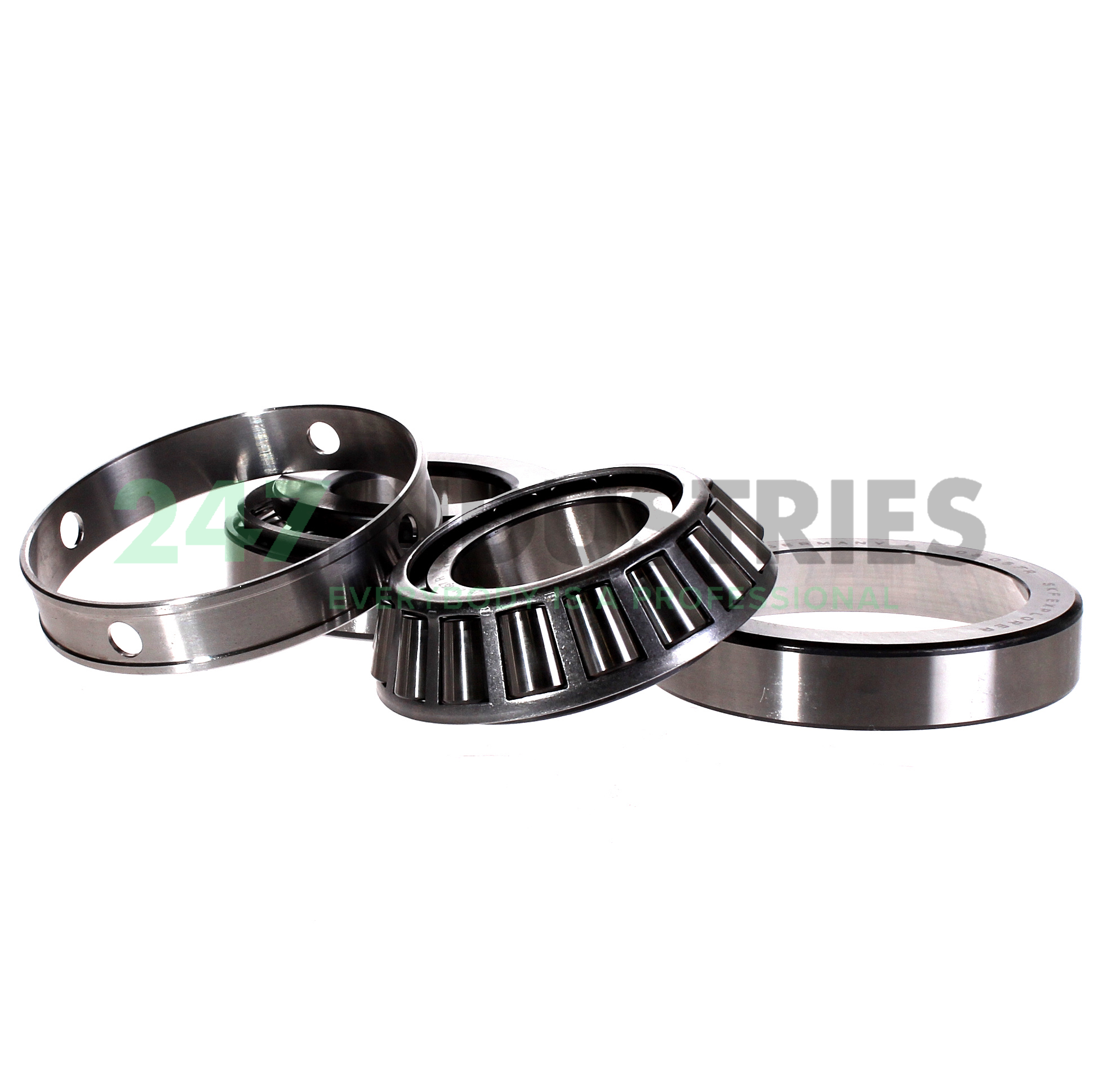

31308J2/QCL7CDF SKF

Afmetingen

1. Binnenmaat (d) mm 40,00
2. Buitenmaat (D) mm 90,00
3. Breedte (B) mm 50,50
4. Binnenmaat (d) inch 1.5748
5. Buitenmaat (D) inch 3.5433
6. Breedte (B) inch 1.9882

Suffix-omschrijving

1. J2 Pressed Steel Window-Type Cage. A Figure Following The J Indicates A Different Cage Design
2. Q Optimized Contact Geometry And Surface Finish
3. CL7C High-Performance Design For Pinion Bearing Arrangements
4. DF Matched Bearing Pair Arranged Face-To-Face. A Figure Combination Immediately Following The DF Identifies The Design Of The Intermediate Ring

Technische specificaties

1. Beschikbaarheid 0 stuks
2. Merk SKF
3. Item number 31308J2/QCL7CDF SKF
4. Also known as 31308A.A50.90.N11CA
   31308-A-N11CA-A50-90
   31308J2/QCL7C (2 PCS)

5. EAN 7316570001709
6. Category Gepaard eenrijige kegellager

Gewicht en afmetingen

1. Gewicht (kg) 1.5

Producteigenschappen

1. Interne speling voor gepaard kegelrollager DF-standaard gekoppelde metrische X-opstelling
