FCA63A-6/HEB14 AC-Motoren GmbH

49,92 excl. BTW
€ 60,40 incl. BTW
€ 60,40 incl. BTW
49,92 excl. BTW

Tijdelijk uitverkocht
Verzending vanuit Nederland
Tot 30 dagen retourneren
Volg uw bestelling via Track & Trace
iDeal, Mastercard, Visa, PayPal

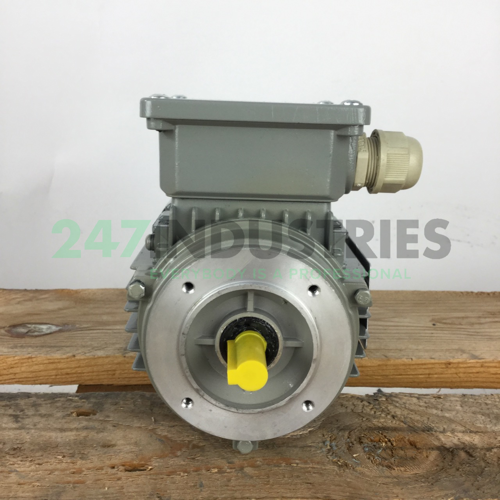

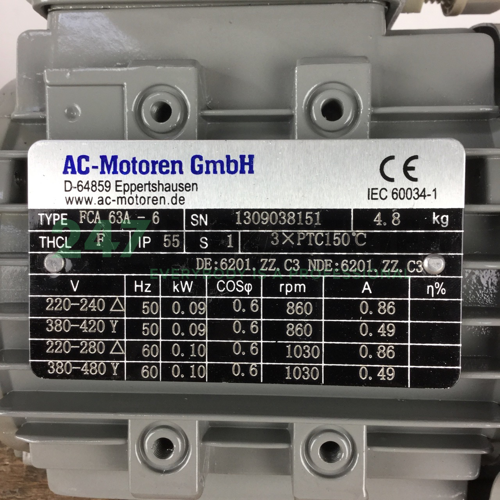

FCA63A-6/HEB14 AC-Motoren GmbH

63-6P 0,09kW 230/400V B14 AL

Voorraad
niet op voorraad
Merk AC-Motoren GmbH
Artikelnummer FCA63A-6/HEB14 AC-Motoren GmbH
Rated power 0.09kW
Mounting B14 (binnenflens)
Frequency 50/60 Hz
Speed (RPM) 1000 / 6-Polig
Productbeschrijving
Read more Toon minder
Hulp nodig?

Vergelijkbaar met: FCA63A-6/HEB14 AC-Motoren GmbH

Vergelijkbare producten worden geladen

Productinformatie/ specificaties

Technische specificaties

  1. Beschikbaarheid 0 stuks
  2. Merk AC-Motoren GmbH
  3. Item number FCA63A-6/HEB14 AC-Motoren GmbH
  4. Category 3-fase motoren

Gewicht en afmetingen

  1. Gewicht (kg) 4

Producteigenschappen

  1. Nominaal vermogen (kW) 0.09
  2. Snelheid bij 50Hz (RPM) / Aantal polen 1000 / 6-Polig
  3. Frequentie 50/60 Hz
  4. Energie-efficiëntie IE2 = hoog = EFF1
  5. Montage B14 (binnenflens)
  6. Rem Geen rem
  7. IP-klasse IP55
  8. Explosieveiligheid (Atex) Geen bescherming
  9. IEC-frameformaat 63

Gedetailleerde producteigenschappen

  1. Voltage 220-230VD / 380-400VY
  2. IEC-frameformaat 63
  3. Asdiameter (mm) 11
  4. Behuizingsmateriaal Alu
  5. AC/DC AC
  6. Standaard IEC
  7. IEC-frameformaat 063
  8. Aslengte (mm) 23
  9. Spiebreedte (mm) 4
  10. Spielengte (mm) 16
  11. Draad as boring M4
  12. Ashoogte, B3 gemonteerd (mm) 63
  13. Breedte voetopeningen, B3 gemonteerd (mm) 100
  14. Lengte voetopeningen, B3 gemonteerd (mm) 80
  15. Diameter voetopeningen (mm) 7
  16. Buitendiameter flens B5/V1/B35/V3 (mm) 140
  17. Pasrand B5/V1/B35/V3 (mm) 95
  18. Steek B5/V1/B35/V3 (mm) 115
  19. Aantal flensopeningen 4
  20. Diameter flensopeningen B5/V1/B35/V3 (mm) 10
  21. Steek B14/B34/V18/V19 (mm) 75
  22. Draad flensopeningen B14/B34/V18/V19 M5
  23. Buitendiameter flens B14/B34/V18/V19 (mm) 90
  24. Pasrand B14/B34/V18/V19 (mm) 60
